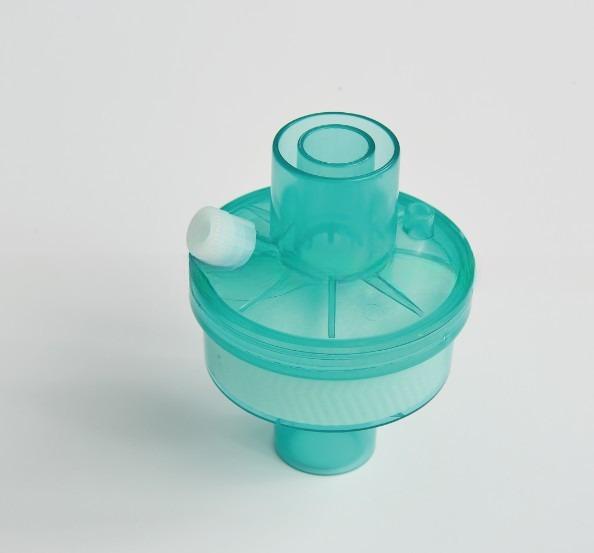

This product is a breathing circuits part for protecting patients against bacterial and viral infection, providing constant heat and moisture purify air.
Usage direction: 1)Open the package, take out the HME filter;
2) connect filter inlet to anesthesia machine’
3) connect filter outlet to respiration tubing, ET tube, mask, etc
4) Operate as normal general anesthesia procedure
5) This product should be used under medical supervisor.
Packaging & Shipping
single hard blister pack, 10pcs/box, 10boxes/carton
Our Services
Product CE and ISO certified
BVL
Technical Data | 150g/m2 filter membrane |
Viral retention: | 99.9998% |
Bacterial retention: | 99.9998% |
Mode of filtration: | Mechanical |
Resistence: | less 0.2Kpa at 30L/min |
Connectors: | 22M/15F and 22F/15MM, CO2 inspect luer lock ISO594 |
Weight: | 20.33g |
Internal volume: | 40.8 cm3 (connector:7.05 cm3 ) |
Sterilisation Metod: | EO Gas |
User duration OR: | 6hrs |
ICU: | 24hrs |
Shelf life: | 3years |
Quality Systém: | CE0123, ISO13485 |
Filter housing : | Green transparent, visual inspection allowed |
Materiál: latex free, DEHP free | Latex Free, DEHP Free |
HME
Technical Data: | 200g/m2 filter membrane |
Viral retention: | 99.999% |
Bacterial retention: | 99.999% |
Mode of filtration: | Machenical |
Humidity out-put: | 33.6mgH2O/L |
Resistance: | less0.2Kpa at 30L/min |
Connectors: | 22M/15F and 22F/15MM, CO2 inspect luer lock ISO594 |
Weight: | 31.75g |
Internal volume: | 61.1cm3 (connector volume:7.05 cm3 ) |
Sterilisation Metod: | EO Gas |
User duration OR: | 6hrs |
ICU: | 24hrs |
Expiration: | 3years |
Quality Systém: | CE0123, ISO13485 |
Filter housing: | Green transparent, visual inspection allowed |
Materiál: | Latex Free, DEHP Free |
